Basic Specifications
Model NO.VWL
ApplicationWorkshop, Shipboard, Warehouse, Building Crane
Lift MechanismCylinder
Carrying CapacityMiddle-Level (250kg)
Driven TypeAC
FeatureExplosion-Proof, Insulating
CertificationCE, ISO 9001
ColorCustomized
Product Description

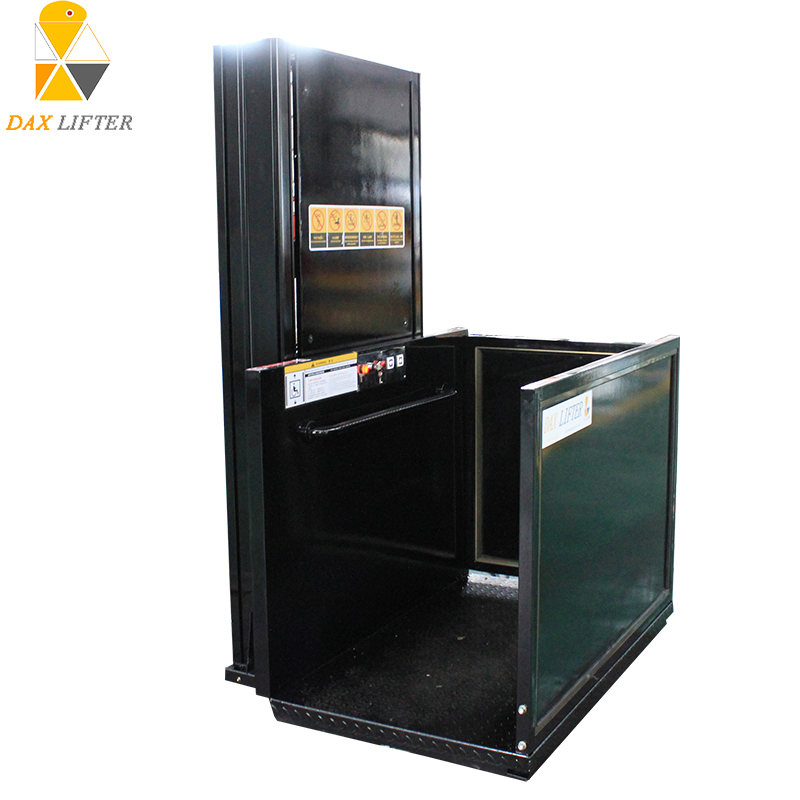

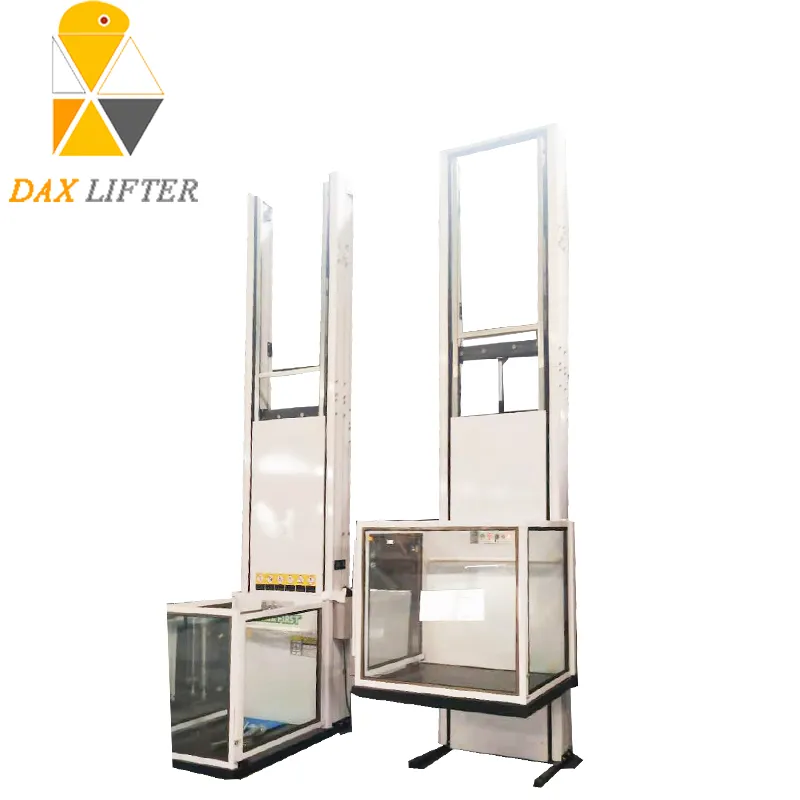

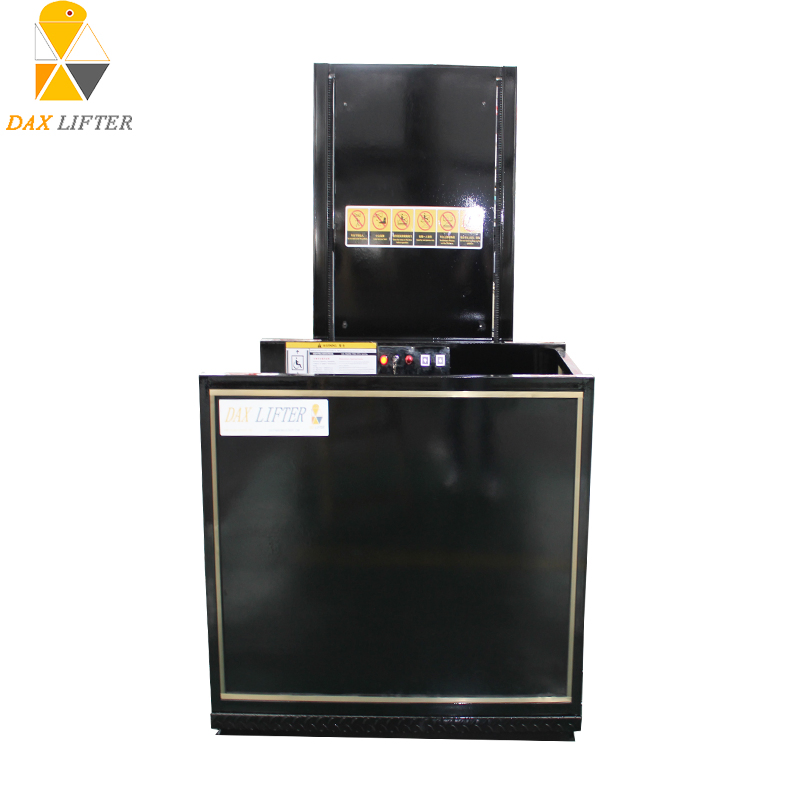

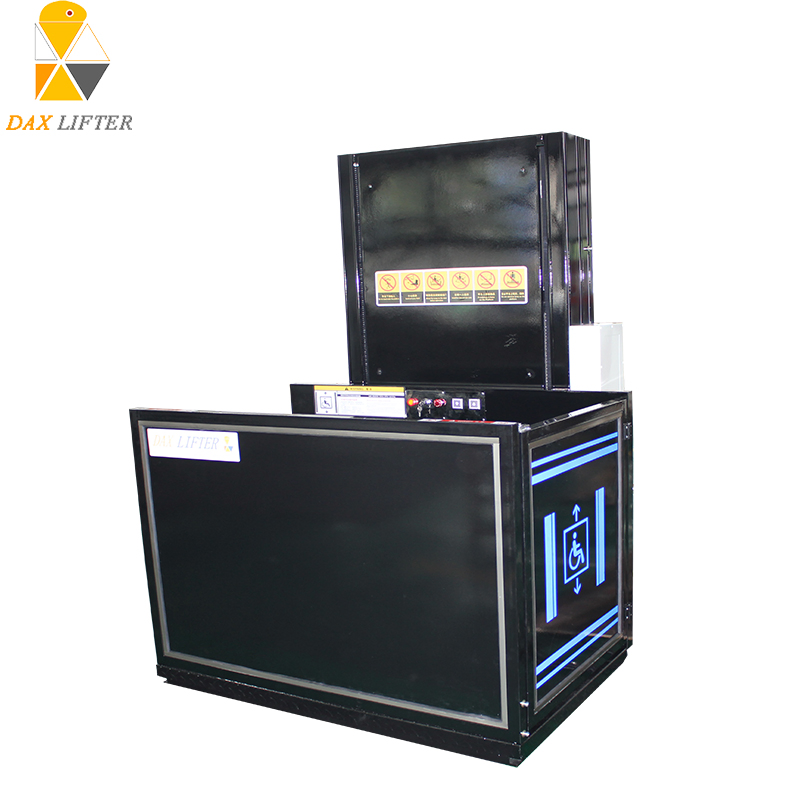

4m 5m 6m CE Qualified Passenger Lift Wheelchair Elevator
Wheelchair lifts are designed for the disabled and the elderly to safely go up and down stairs, providing high quality and durability at a more economical price. It is equipped with a high-performance pump station, which provides sufficient power to ensure the smooth lift of wheelchair lifts while maintaining a low-noise environment.
Technical Data
| Model Type |
VWL2510 |
VWL2520 |
VWL2530 |
VWL2540 |
VWL2550 |
VWL2560 |
| Max. Platform Height |
1000mm |
2000mm |
3000mm |
4000mm |
5000mm |
6000mm |
| Load Capacity |
250kg |
250kg |
250kg |
250kg |
250kg |
250kg |
| Platform Size |
1430*1000mm skid proof checkered steel |
| Speed |
0.06~0.1m/s |
| Control Voltage |
24V/DC |
| Power Output |
1.1~2.2KW |
| Materials |
Aluminium rails and guard with spraying plastics |

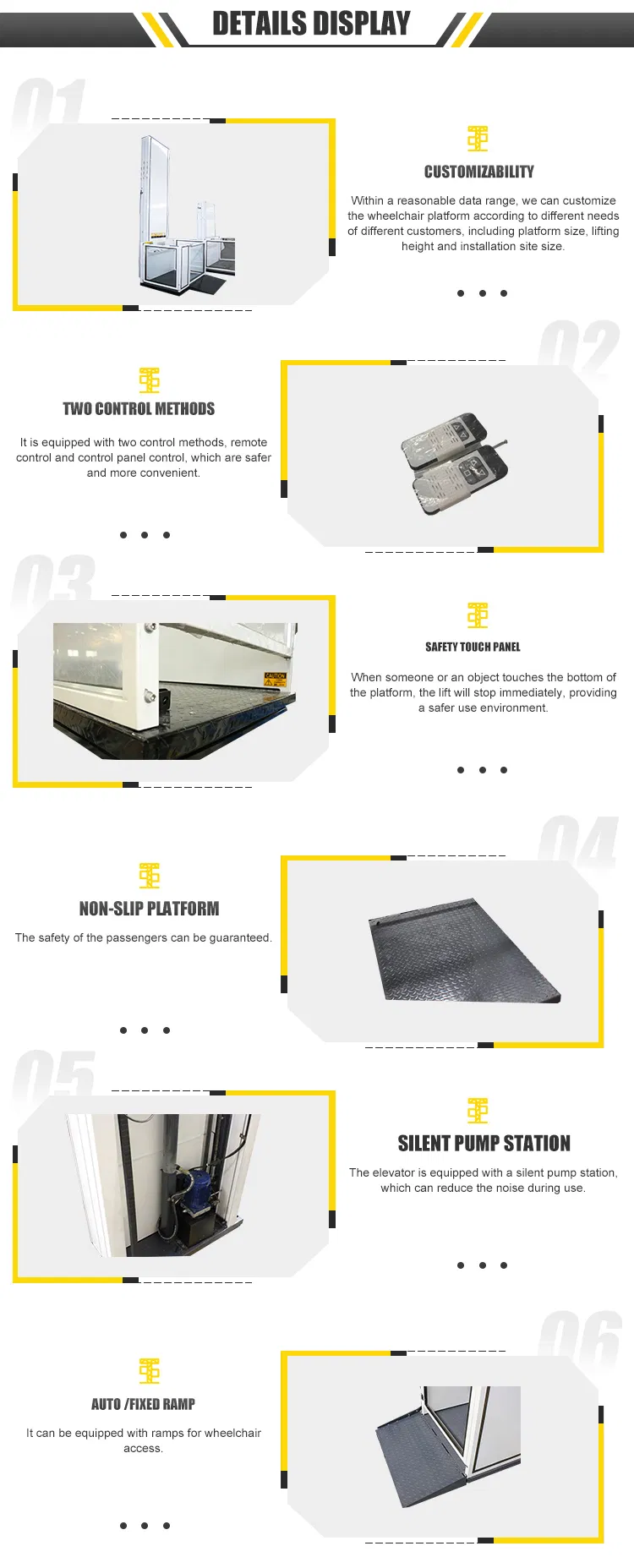

Key Features & Advantages
H-type Guide Rail Structure
The design structure is safe and practical, ensuring more convenient installation.
Aluminum Alloy Material
High-quality aluminum alloy is used, providing resistance to rust and a longer lifespan.
Safety Sensor
Equipped with a bottom sensor that stops the lift immediately if an obstruction is detected.

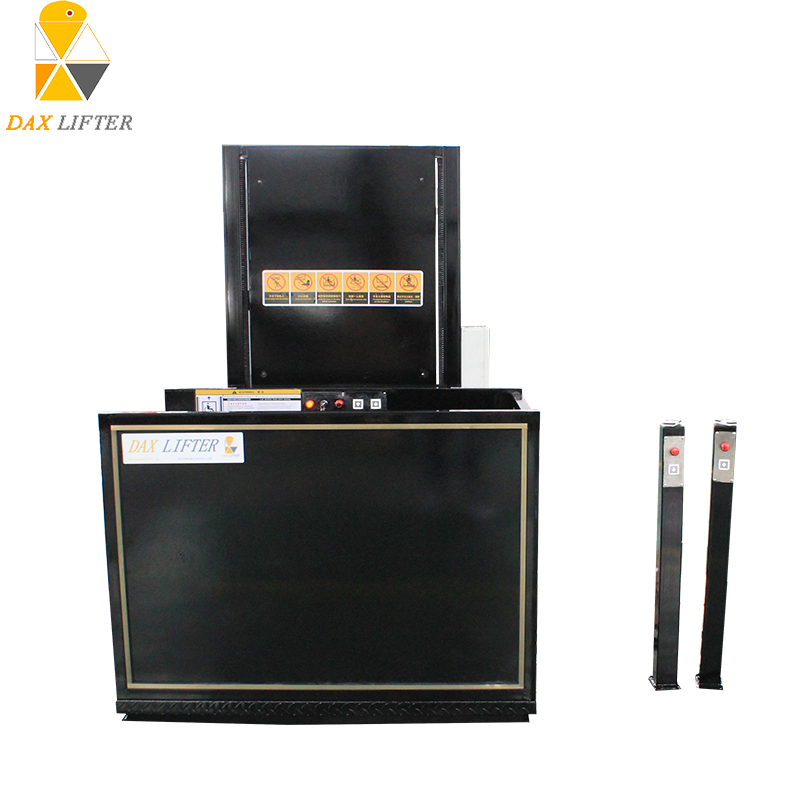

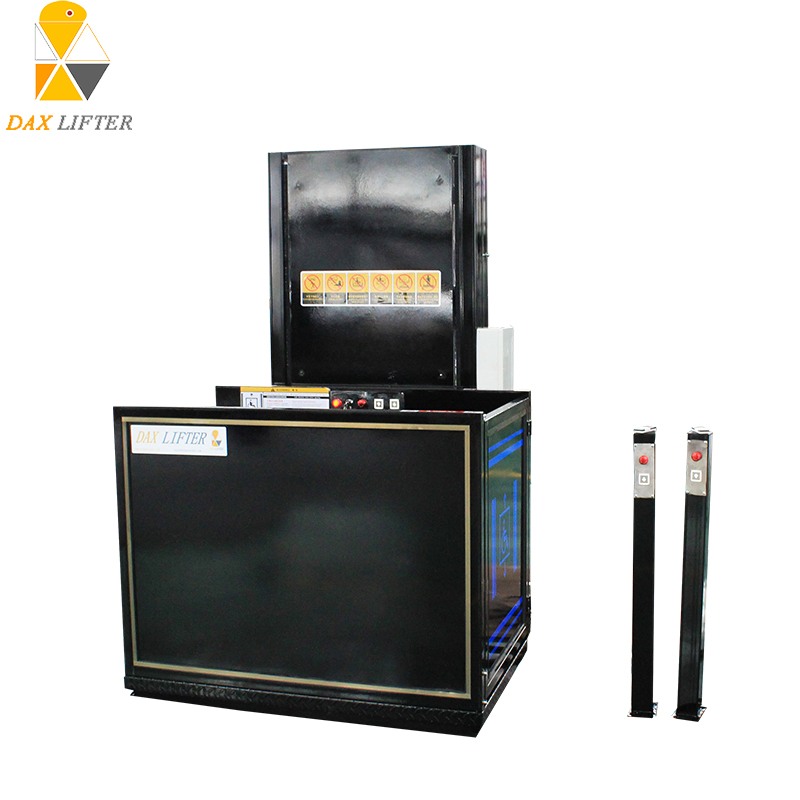

Three Control Methods
Includes platform panel, column control, and remote control for maximum convenience.
Non-slip Platform
Checkered steel surface ensures stability and safety during entry and exit.
Emergency Configuration
Equipped with emergency stop and lowering buttons for safety during power failures.
Frequently Asked Questions
Q1: What is the maximum lifting height available?
We offer various models with maximum platform heights ranging from 1 meter up to 6 meters to suit different building requirements.
Q2: What is the standard load capacity for this wheelchair lift?
The standard carrying capacity is 250kg, which is ideal for a wheelchair user and an attendant if necessary.
Q3: Can the lift be installed outdoors?
Yes, the lift is designed for both indoor and outdoor use, with a working temperature range of -20°C to 70°C.
Q4: Is the installation process complicated?
No, the installation is simple. Most parts are pre-assembled before delivery. For lifts under 3m, they can be installed directly on the floor without a pit.
Q5: What safety features are included to protect the user?
The lift includes a safety sensor under the platform, emergency stop buttons, an emergency lowering system, and a non-slip checkered steel platform.
Q6: Are customized services available?
Yes, we offer OEM and ODM services, including customized colors, cabin designs, and specific entry-exit configurations (90° or 180°).
