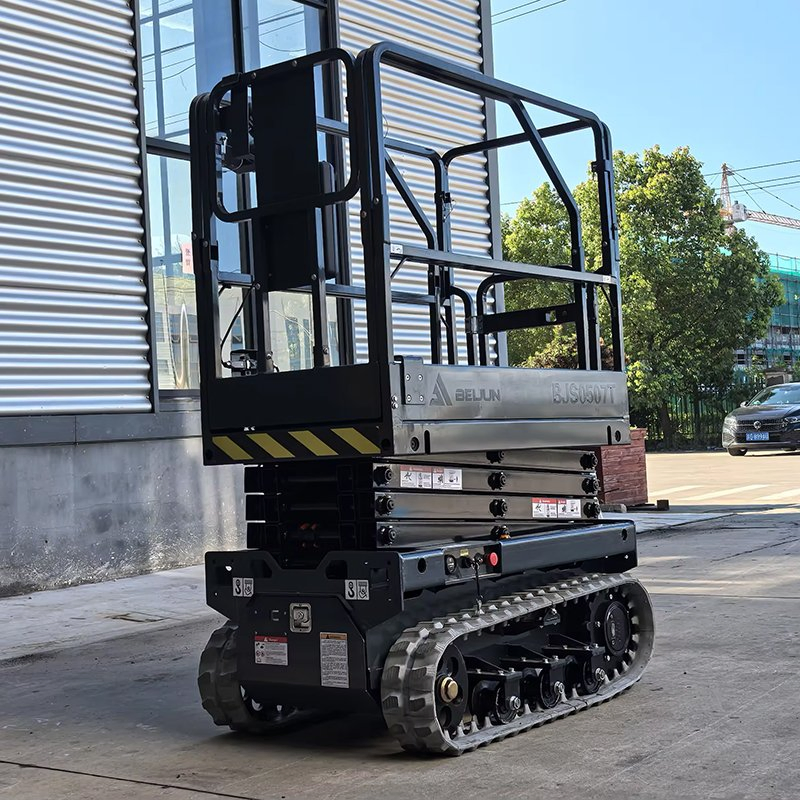

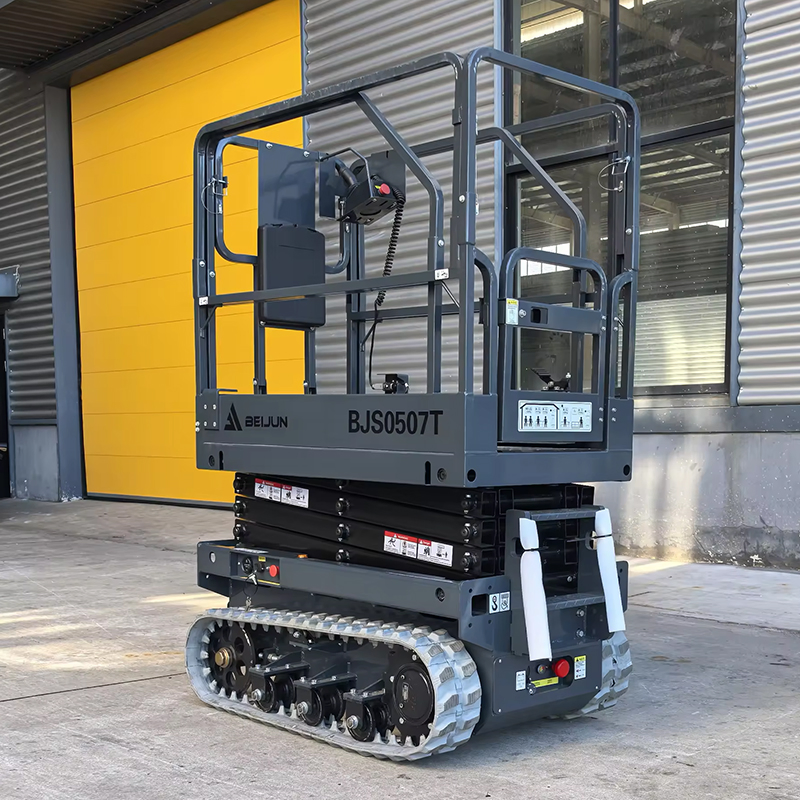

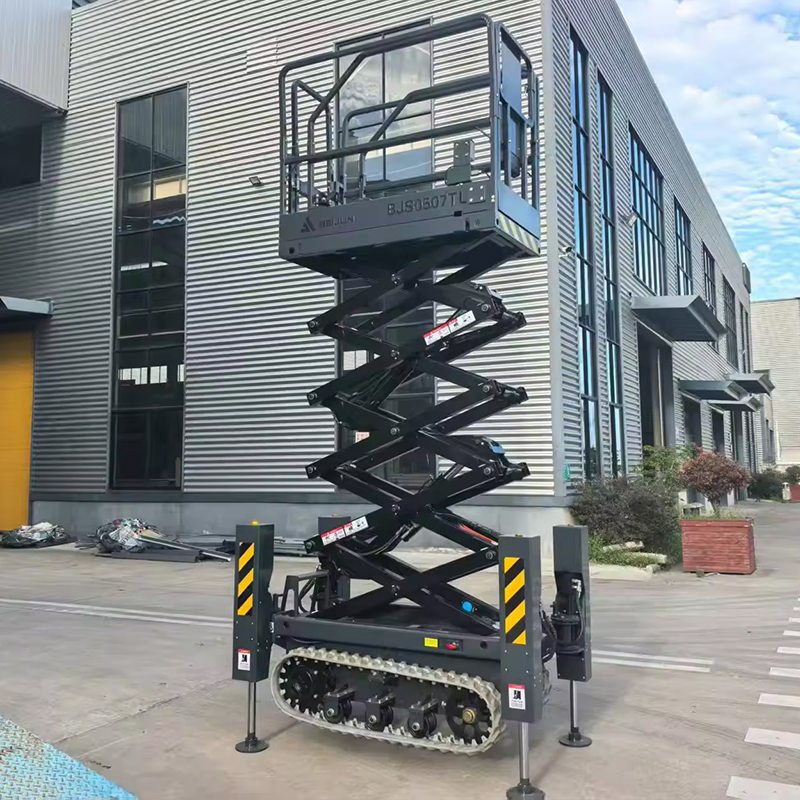

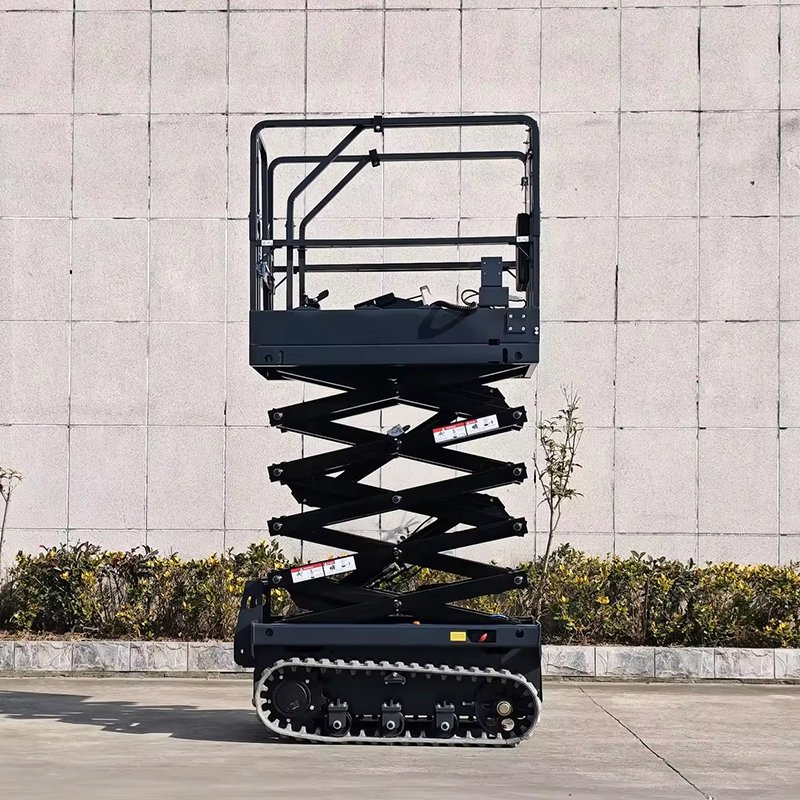

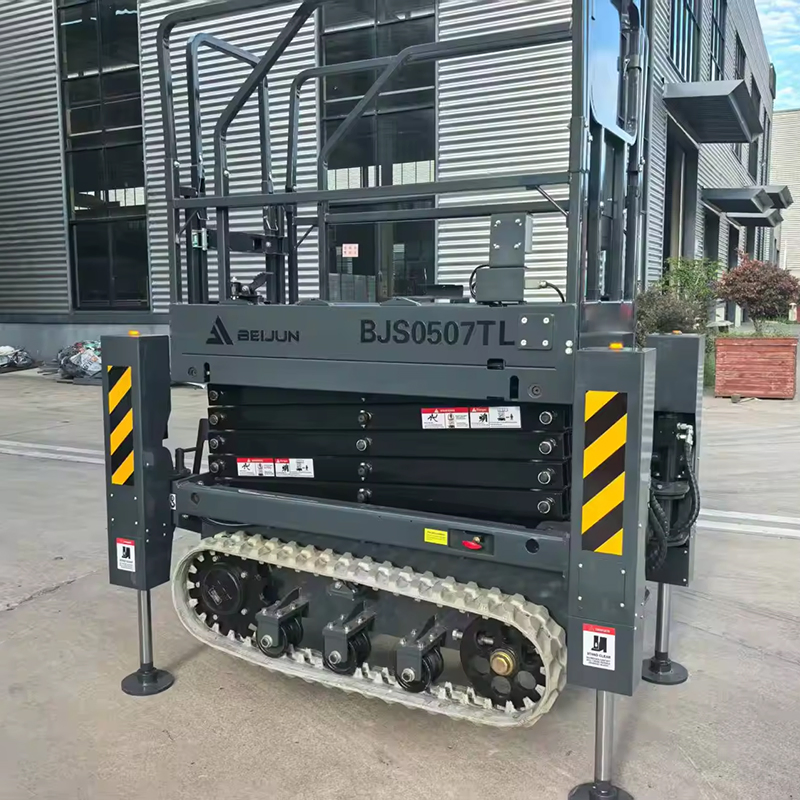

New Mobile Manual Home Lifting Platform Mini Crawler Hydraulic 200kg Lift Electric Stair Scissor Lift

Customization: Available
After-sales Service: Online Support
Warranty: 1years

Product Description

Overview & Basic Information
Model NO.
BJ-0507T
Application
Workshop Crane, Warehouse Crane, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
230kg
Moves
Self-propelled
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
CE, ISO 9001
Product Dimensions
1560*880*1520mm
Max Platform Occupancy
2
Max Working Inclination
1.5°/2.5°
Electric Motor
24V/2×1kw
Product Description

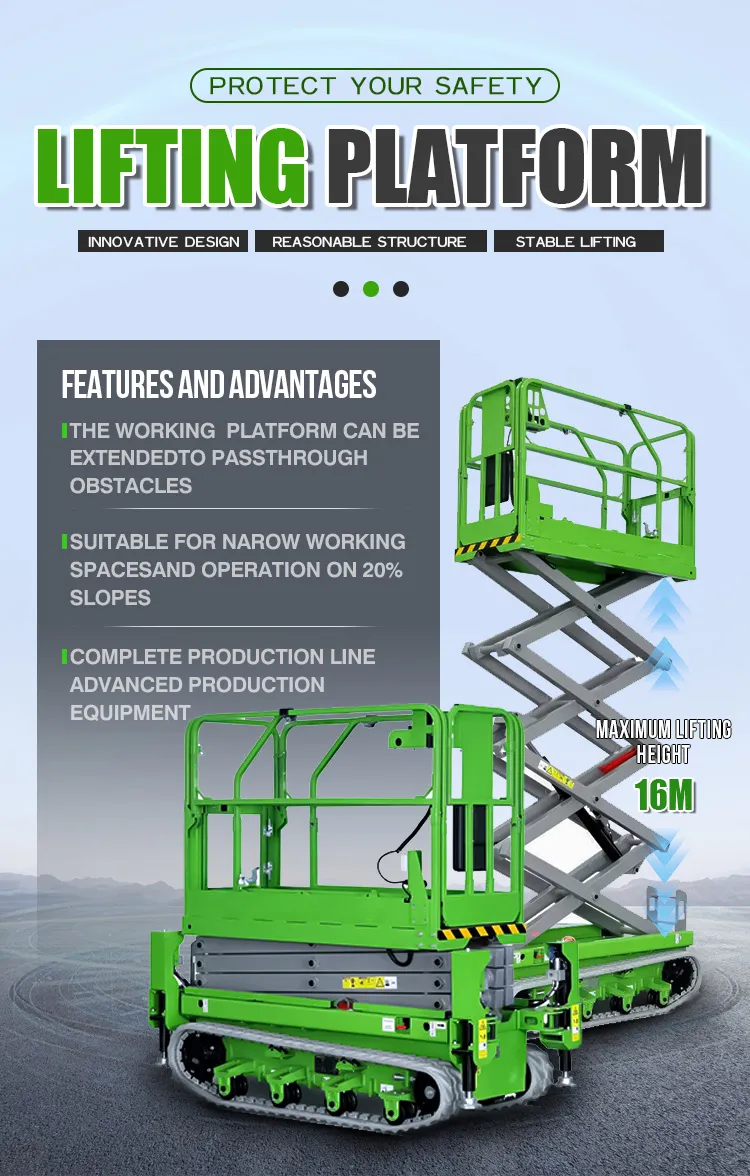

Lifting Platform 1
Lifting Platform 2
Lifting Platform 3

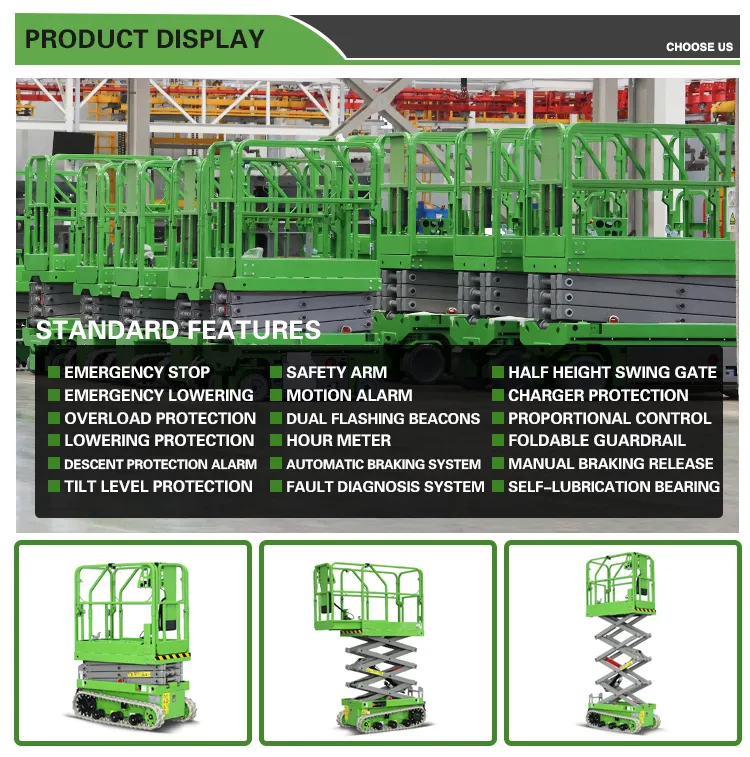

Lifting Platform 4

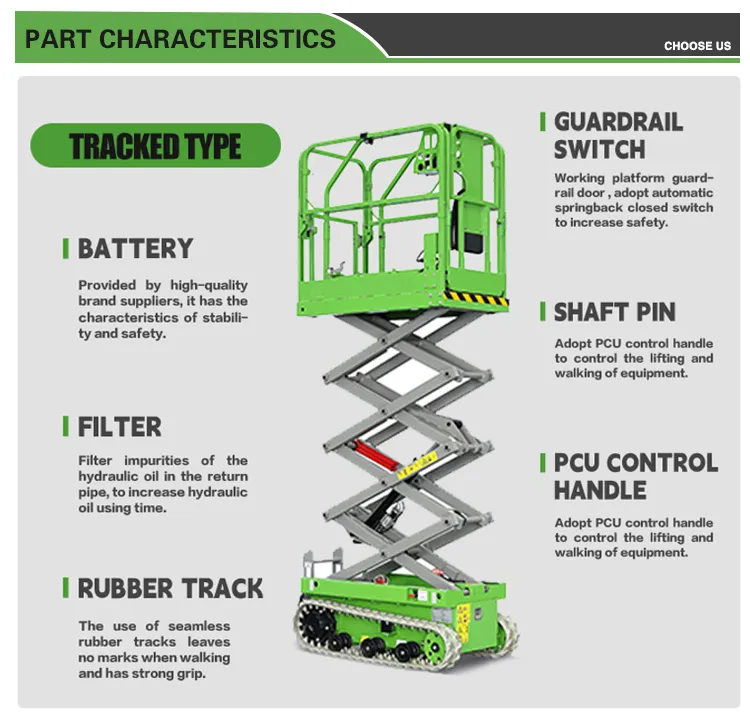

Lifting Platform 5
Product Parameters
Model BJS0507T BJS0607T BJS0610T BJS0810T BJS1012TL BJS1212TL BJS1416TL
Dimensions
Max operating height (m)6.67.88.310.3121416
Max platform height (m)4.65.86.38.3101214
Platform length (mm)1400140018001800227022702670
Platform width (mm)760780800800112011201120
Performance
Rated load capacity (kg)230230300300450450450
Gradeability (%)30303030303030
Weight (kg)816105516401745346037604760

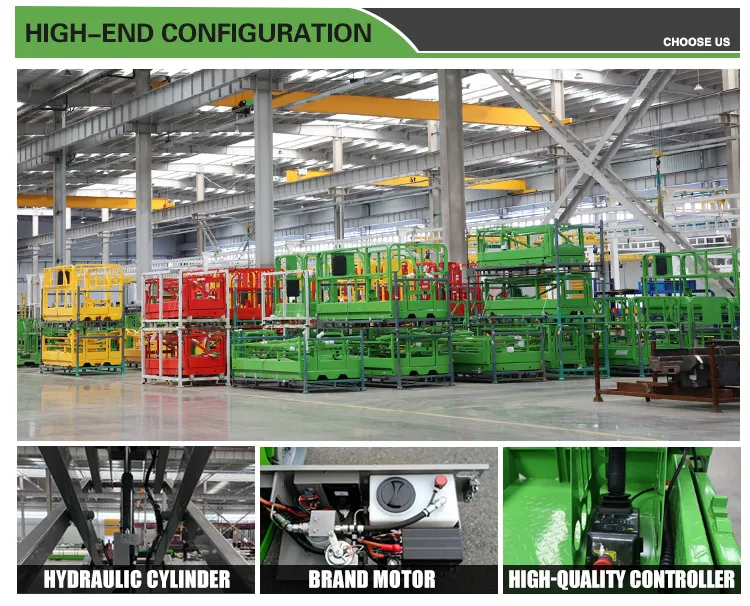

Technical Drawing 1

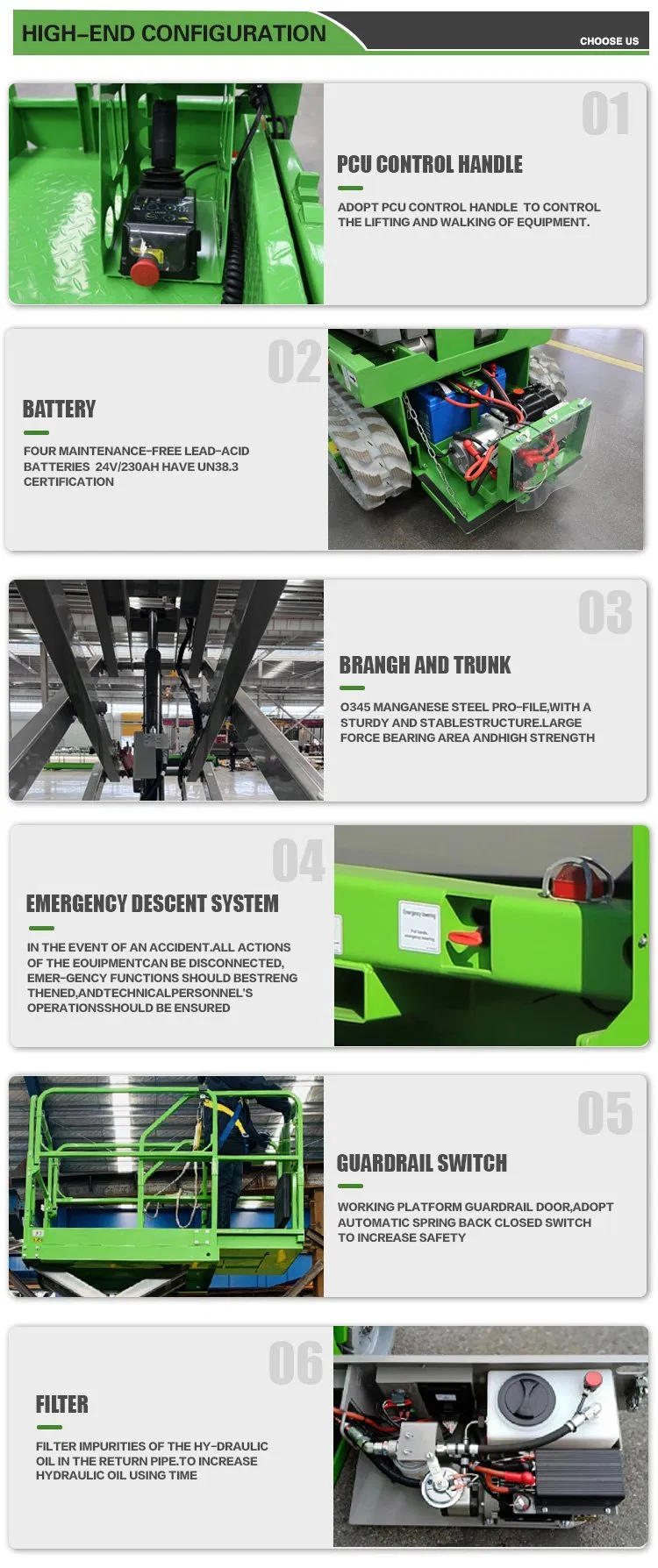

Technical Drawing 2
Production Display
Factory 1
Factory 2
Factory 3
Factory 4
Factory 5
Factory 6
Frequently Asked Questions
What is the maximum working height of the BJ-0507T model?
The BJ-0507T model offers a maximum operating height of 6.6 meters and a platform height of 4.6 meters.
What is the carrying capacity of this scissor lift?
The standard carrying capacity for the BJ-0507T is 230kg, suitable for up to 2 occupants on the platform.
Is the machine self-propelled?
Yes, this series features a self-propelled moving mode driven by a hydraulic system for ease of maneuverability in workshops and warehouses.
What safety certifications does the equipment have?
The product is certified with CE and ISO 9001, ensuring it meets international safety and quality standards.
What type of tracks or wheels are used?
Smaller models use non-marking rubber tracks, while larger TL series models utilize steel tracks with nylon blocks for enhanced durability and stability.
What are the power requirements for the motor?
The BJ-0507T utilizes a 24V/2×1kw electric motor powered by maintenance-free lead-acid batteries.
