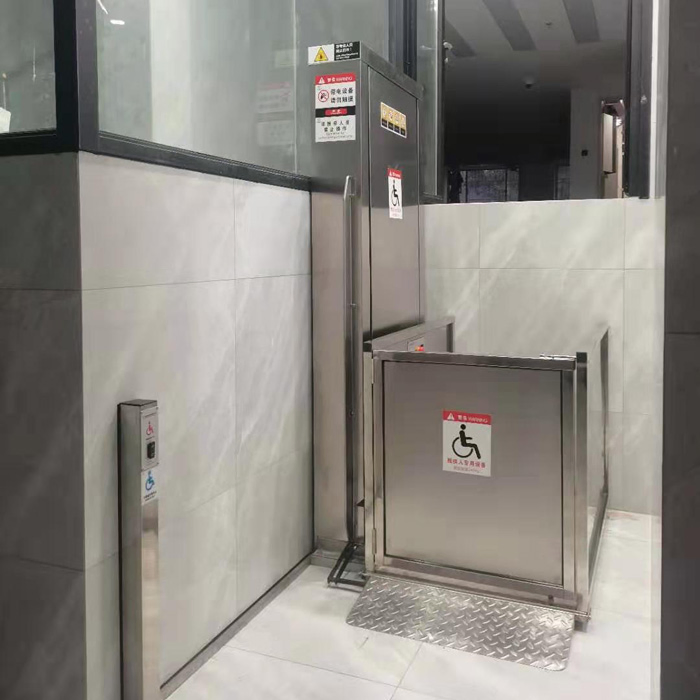

Residential Home Elevators Wheelchair Lifts Stair Lifts for Disabled

1 / 5

Residential Home Elevators Wheelchair Lifts Stair Lifts for Disabled

Customization:	Available
After-sales Service:	24 Hours Technical Support
Warranty:	12 Months

Send Inquiry

Product Description

Basic Specifications

Model NO.

X-500L

Driving Type

Hydraulic Type

Capacity

250kg

Persons

2-3 Persons

Speed

70mm/S

Control Mode

Push-Button Control

Elevator Door

Customized

Lifting Height

1m-10m

Production Date

30 Days After Deposit

Transport Package

Export Wooden Box Packaging

HS Code

8428909090

Production Capacity

10000 Sets Per Month

✓

Product Description

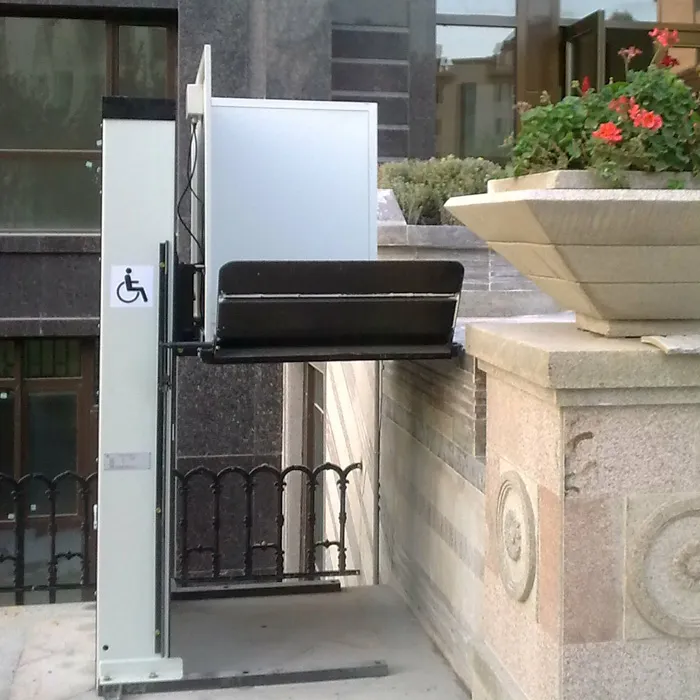

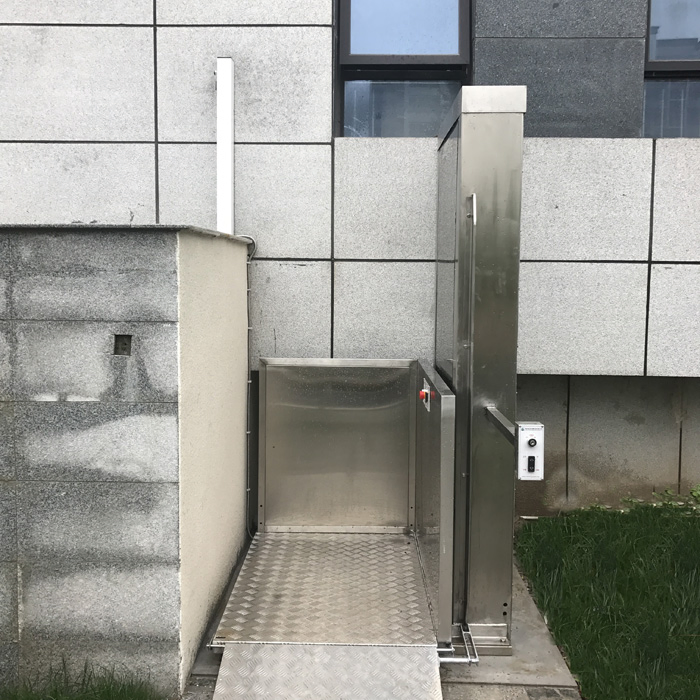

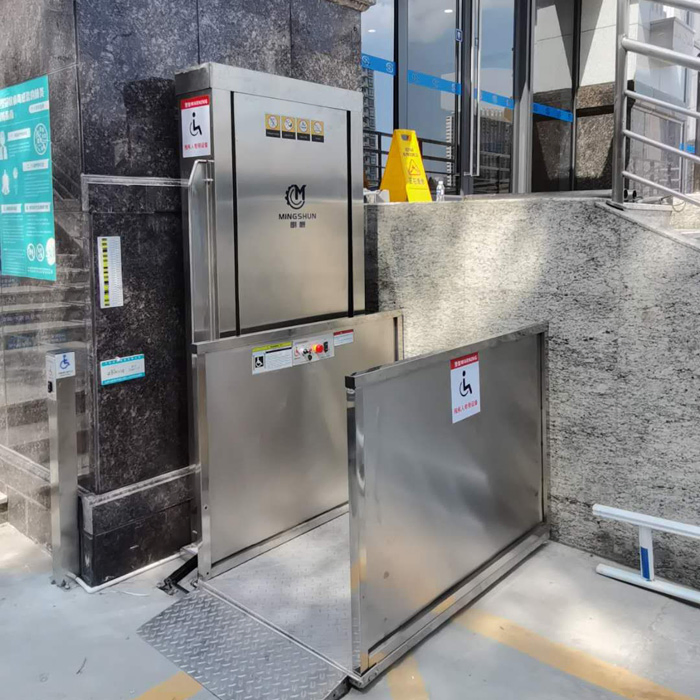

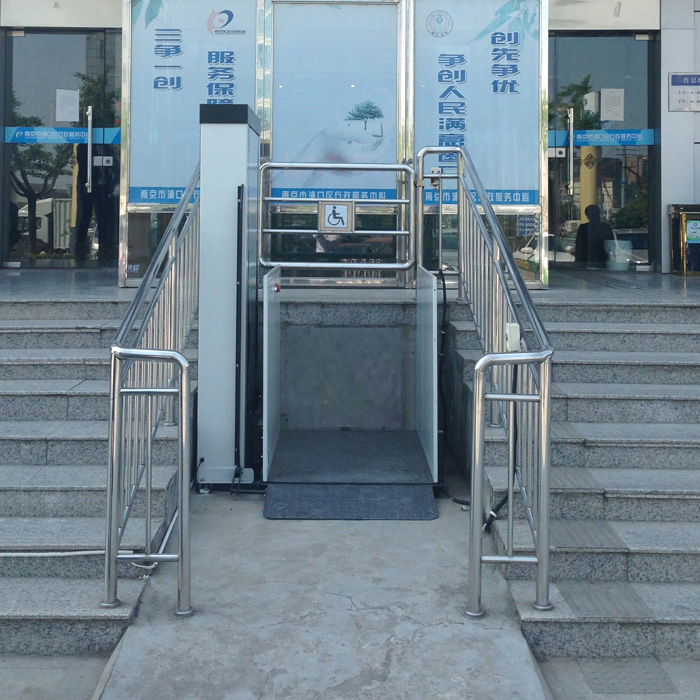

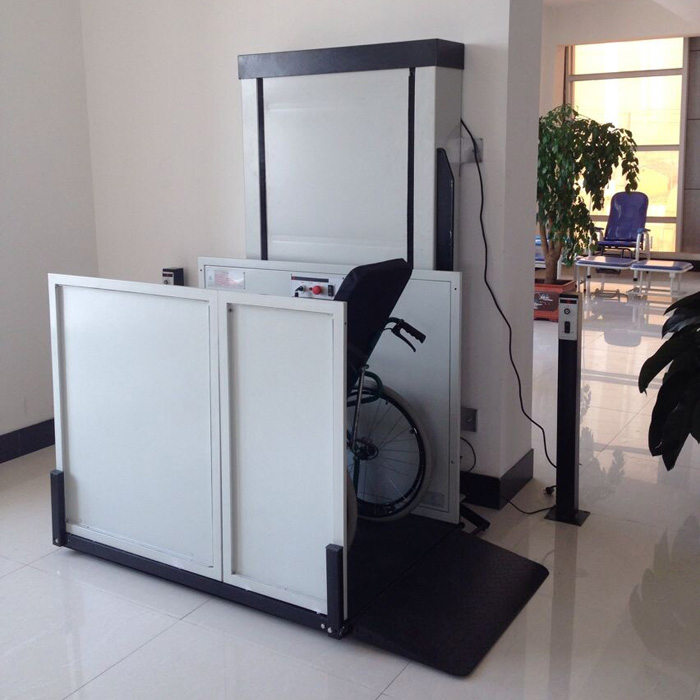

Wheelchair platform lift for home is customized products for lifting cargo or wheelchair for disabled people. It is suitable for solving disabled passengers with large height differences between floors. Platform space can accommodate both wheelchairs and escorts.

This wheelchair platform lift has the features of smooth running speed, high safety, easy installation, small space required & no pits required.

Technic Parameters and Functions
Voltage	220V/50HZ or Customized
Overall Dimensions	1670mm(L)×1270mm(W)×(lifting height+550)mm (H)
Lifting Height	2000mm (Customizable)
Min. Height of Base Plate	60mm from the ground
Installation	No Foundation/Pit Required
Lifting Speed	60mm/s Inverter control, soft start soft brake
Max Loading	240kg
Guard Form	90° or 180° configuration
Drive	Screw Drive
Power	2.2kw 220V/AC
Control	Rocker Self-reset, Switch Operation
Environment	Indoor & Outdoor (-20°C to 60°C)
Safety Rocker	Automatically tilts up to prevent wheelchair from sliding
Emergency Features	Emergency Stop Button & Electric Emergency Descent

Safe performance and pit-free installation design bring you the convenience of barrier-free access construction and elevator-like enjoyment. Widely used in residential quarters, hotels, restaurants, administrative office buildings, subways, banks, gymnasiums, hospitals and other public places. It has the characteristics of novel design, safety and stability, beautiful appearance, low noise, and low temperature resistance. In line with ASME A18-1 and CSA-B613 standards.

Product Gallery

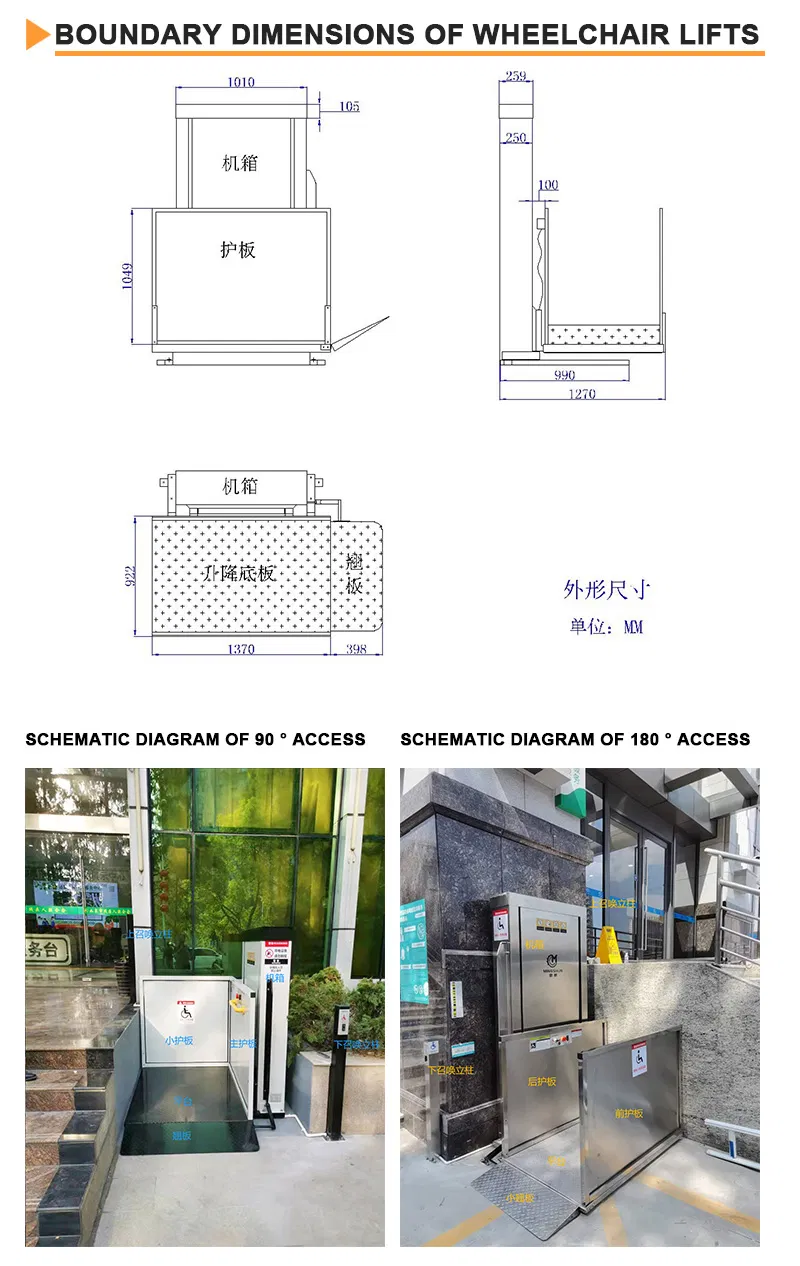

Residential Home Elevators Wheelchair Lifts Gallery 1

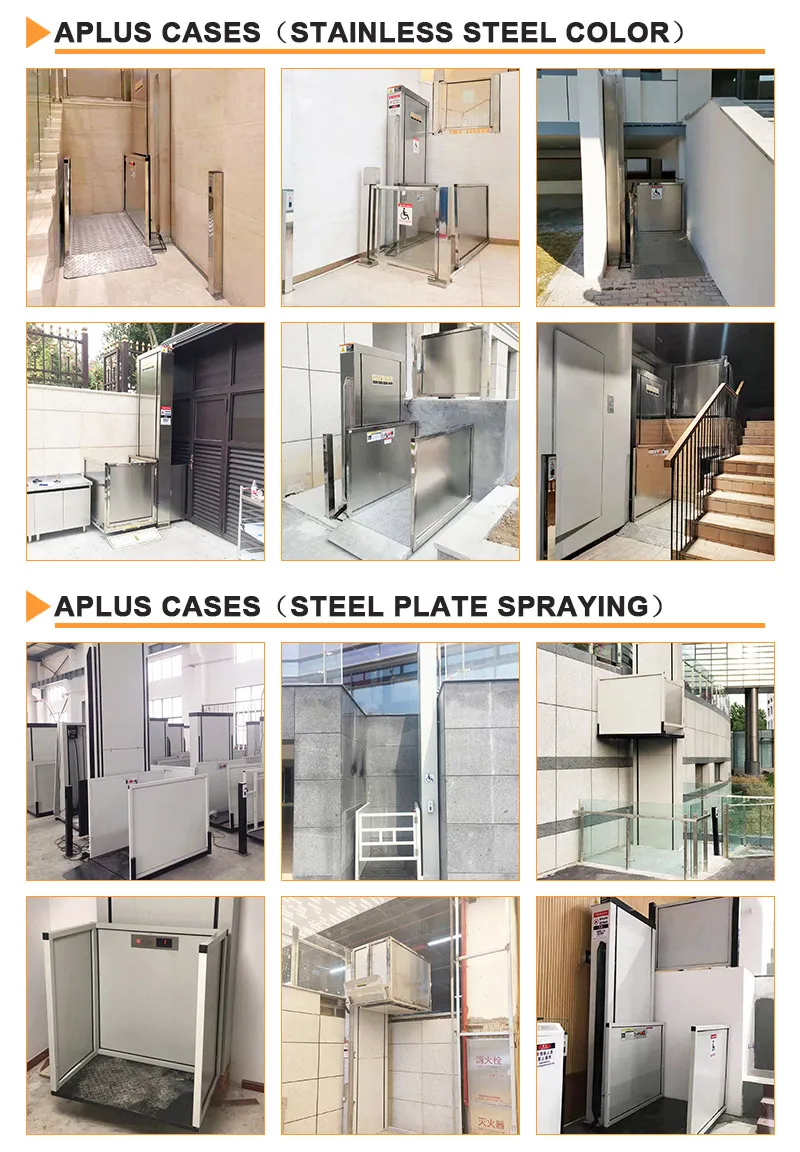

Residential Home Elevators Wheelchair Lifts Gallery 2

Residential Home Elevators Wheelchair Lifts Gallery 3

Frequently Asked Questions

What is the maximum weight capacity of this wheelchair lift?

The lift is designed to handle a maximum loading capacity of 240kg to 250kg, which safely accommodates a wheelchair user and an additional attendant.

Is a specialized pit required for installation?

No, this model features a pit-free and foundation-free design. The minimum height of the base plate is only 60mm from the ground, making it very easy to install in existing buildings.

Can this lift be used in outdoor environments?

Yes, the equipment is designed for both indoor and outdoor use. It is built to withstand temperatures ranging from -20°C to 60°C and features electrostatic spraying or stainless steel finishes for durability.

What happens if there is a power failure during operation?

The lift is equipped with an electric emergency descent system and an emergency stop button, allowing the platform to be lowered safely even during power interruptions.

Are the lifting height and colors customizable?

Absolutely. While the standard lifting height is up to 2000mm, we offer customization from 1m up to 10m. The color and appearance (stainless steel or specific RAL colors) can also be tailored to your requirements.

How does the safety rocker work?

The safety rocker is an automatic flap that tilts up as the platform begins to rise. This creates a physical barrier that prevents the wheelchair from accidentally sliding off the platform during transit.
