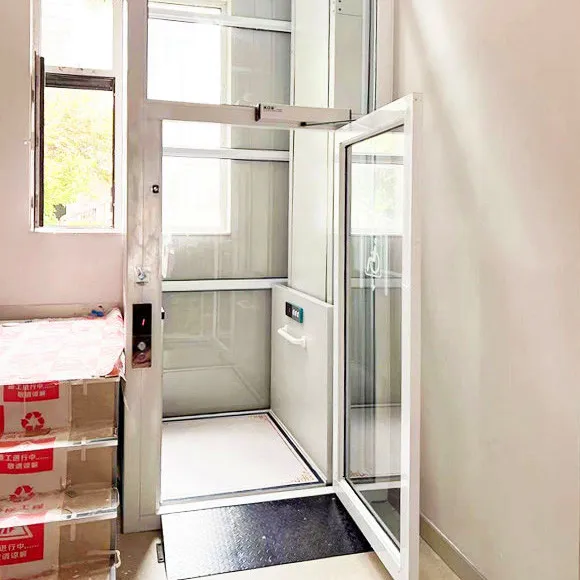

Residential Hoistway Vertical Home Platform Stair Lifts Elevator Price Cheap Home Elevator for Passenger
Residential Hoistway Vertical Home Platform Stair Lifts Elevator Price Cheap Home Elevator for Passenger
Residential Hoistway Vertical Home Platform Stair Lifts Elevator Price Cheap Home Elevator for Passenger
Residential Hoistway Vertical Home Platform Stair Lifts Elevator Price Cheap Home Elevator for Passenger
Residential Hoistway Vertical Home Platform Stair Lifts Elevator Price Cheap Home Elevator for Passenger
1 / 5
Residential Hoistway Vertical Home Platform Stair Lifts Elevator Price Cheap Home Elevator for Passenger
Residential Hoistway Vertical Home Platform Stair Lifts Elevator Price Cheap Home Elevator for Passenger
Residential Hoistway Vertical Home Platform Stair Lifts Elevator Price Cheap Home Elevator for Passenger
Residential Hoistway Vertical Home Platform Stair Lifts Elevator Price Cheap Home Elevator for Passenger
Residential Hoistway Vertical Home Platform Stair Lifts Elevator Price Cheap Home Elevator for Passenger

Residential Hoistway Vertical Home Platform Stair Lifts Elevator Price Cheap Home Elevator for Passenger

Customization: Available
After-sales Service: 24 Hours Technical Support
Warranty: 12 Months
Send Inquiry

Product Description

Basic Information

Model NO.Y-160
Driving TypeHydraulic or Screw
Capacity250kg
Persons2-3 Persons
Speed70mm/S
Control ModeElectric
PositionOutdoor or Indoor
Lifting Height1m-10m
Production Date30 Days
Operation ModeElectric
Production Capacity10000 Sets/Month
HS Code8428909090

Product Description

The hoistway lift platform features stable running speed, high safety, and easy installation. With a small footprint and no need for machine pits, it is an ideal, cost-effective alternative to traditional home elevators. The platform space accommodates wheelchairs and escorts, helping individuals with mobility challenges navigate stairs effortlessly. It is also suitable for transporting goods across up to 3 floors.
🛡️ High Safety

Equipped with overload protection and emergency descent systems.

⚙️ Easy Install

No foundation pit required; direct fixation on concrete floor.

♿ Accessible

Spacious enough for wheelchairs and escorts.

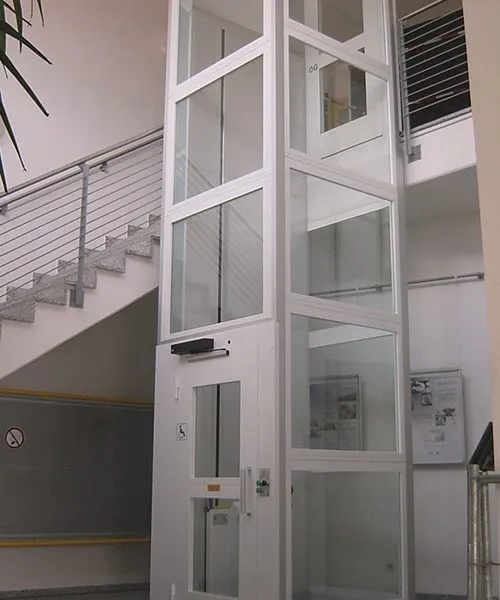

Home Platform Stair Lift

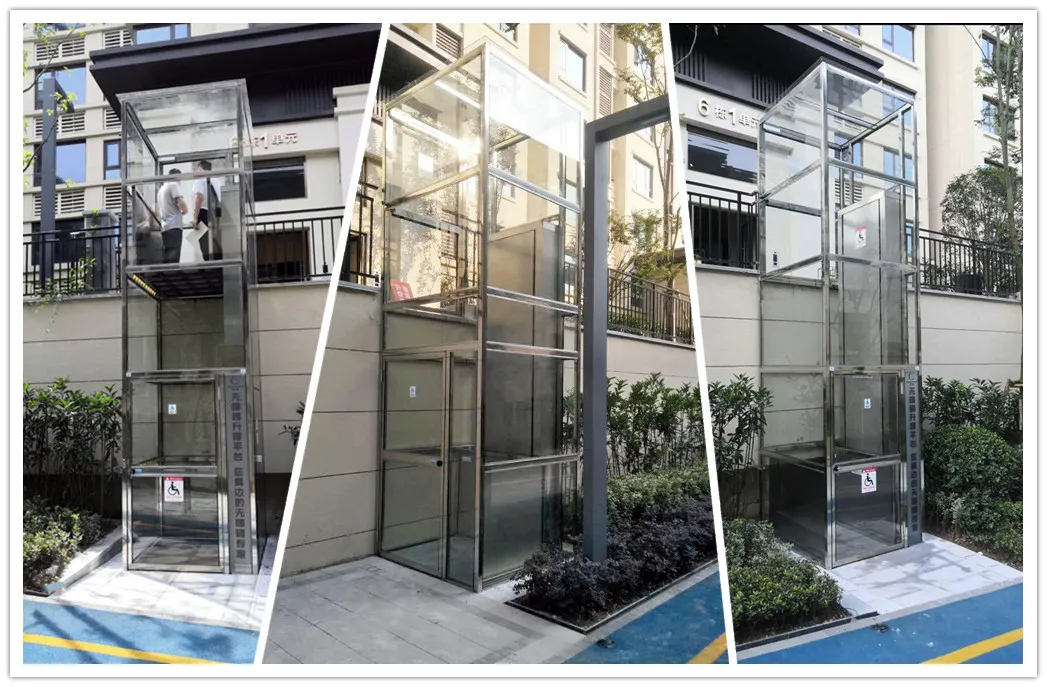

Residential Hoistway Elevator

Technical Specifications

Y-160 Hoistway Vertical Platform Lifts
Voltage220V/50HZ or Customized
Overall Dimensions1590mm×1380mm×(Lifting Height+2200mm)
Installation Dimensions1590 mm(L)×1380 mm(W)
Lifting Base Plate Size1370mm×920mm
Lifting Speed90mm/s Inverter control, soft start/brake
Max. Loading240kg
Drive WayHydraulic double-valve silent motor-driven
Motor Power2.2kw 220V/AC
Opening MethodAutomatic
Operating Temp-20°C to 60°C

Safety Equipment

Overload Protection Does not operate when overloaded; sends alarm signal.
Emergency Stop Instant stop via emergency button.
Emergency Descent Electric emergency descent for power failure scenarios.
Safety Door Sensor light curtains installed at entrances and exits.

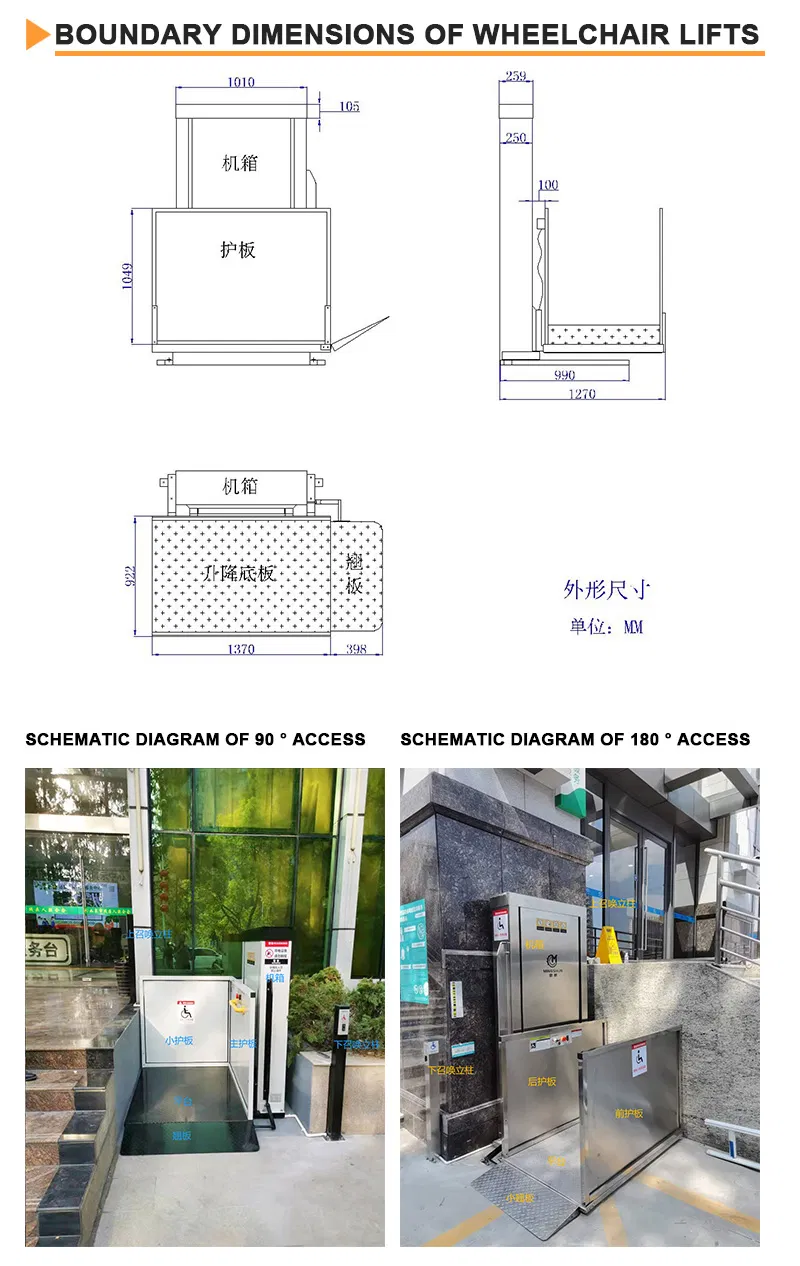

Elevator Safety Features

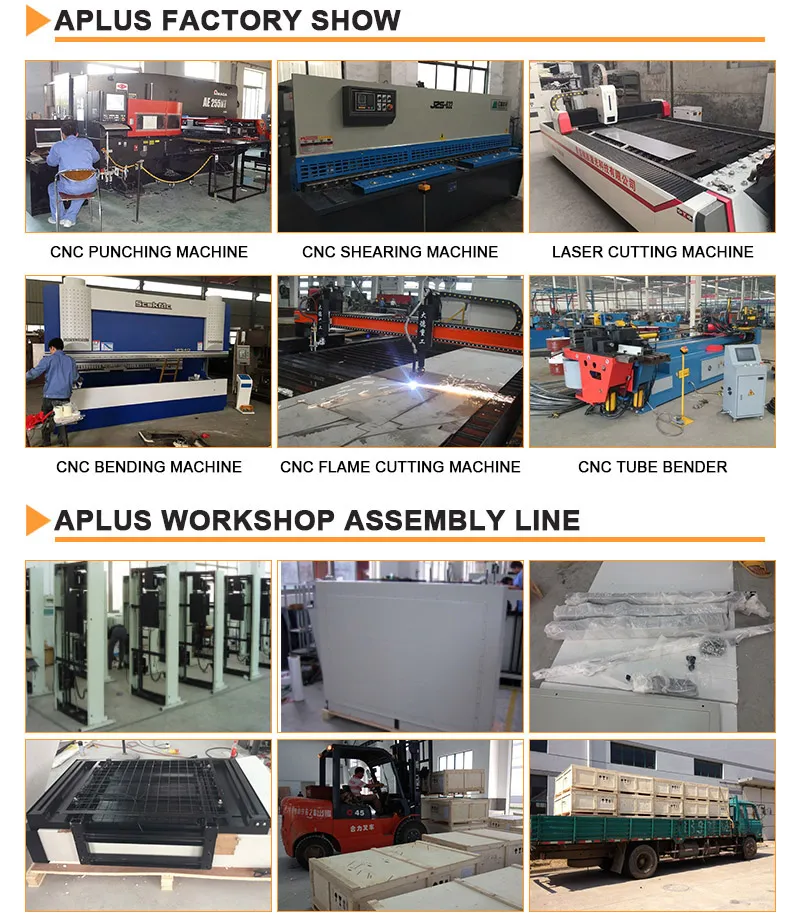

Lift Platform Detail

Frequently Asked Questions

Is a foundation pit required for installation?
No, the Y-160 model is designed for no-pit installation. It can be directly fixed onto a horizontal concrete floor and wall.
What is the maximum lifting height and capacity?
The standard lifting height ranges from 1m to 10m (customizable), and the maximum loading capacity is 240kg-250kg.
Can this lift be used outdoors?
Yes, the equipment is designed for both indoor and outdoor applications, with a working temperature range of -20°C to 60°C.
How safe is the elevator for wheelchair users?
It is highly safe, featuring sensor light curtains, emergency descent, and overload protection to ensure smooth and secure transit.
What are the power requirements?
The standard voltage is 220V/50HZ, but it can be customized to meet your specific local electrical requirements.
How long does production take?
Production typically takes approximately 30 days after the receipt of the deposit.
